Teltonika TRB500
Mobilnätsgateway 5G
Lägg till en bevakning så meddelar vi dig så snart varan är i lager igen.
Teltonika TRB500
Mobilnätsgateway 5G

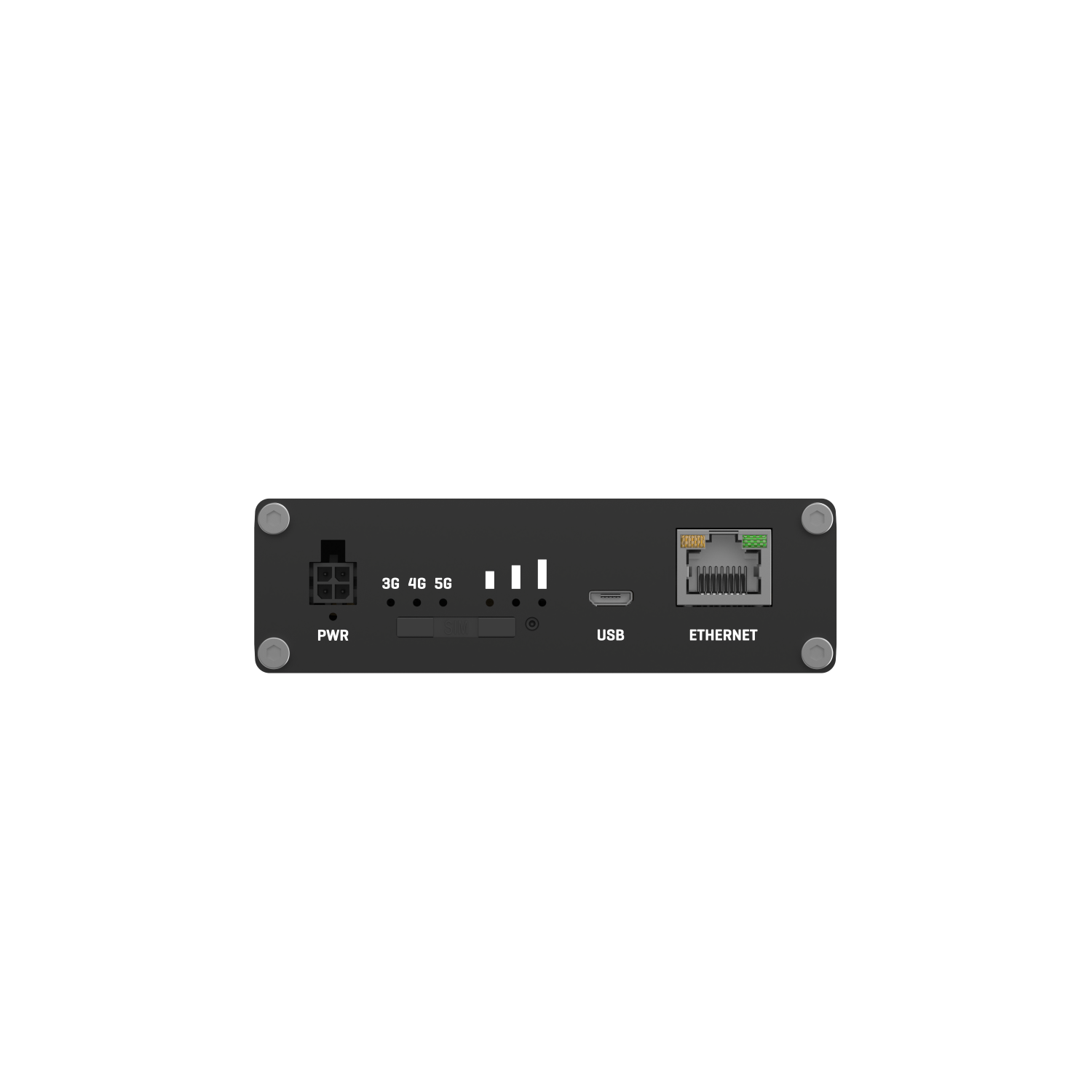

INTERFACES
- Mobile: 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
- Ethernet: 1 x RJ45 ports, 10/100/1000 Mbps
- I/O’s: 2 x Configurable I/O pins on 4-pin power connector
- Status LEDs: 3 x connection type status LEDs, 3 x connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
- SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
- Power: 1 x 4-pin power connector
- Antennas: 4 x SMA for Mobile
- USB: 1 x Virtual network interface via micro USB
- Reset: Reboot/User default reset/Factory reset button
POWER
- Connector: 4-pin industrial DC power socket
- Input voltage range: 9 – 30 VDC
- Power consumption: Idle: 3W, Max: 6 W
PHYSICAL SPECIFICATION
- Casing material: Aluminum housing, plastic panels
- Dimensions (W x H x D): 100 x 30 x 93.4 mm
- Weight: 241 g
- Mounting options: DIN rail , flat surface placement (additional kit needed)
OPERATING ENVIRONMENT
- Operating temperature: -40 °C to 75 °C
- Operating humidity: 10% to 90% non-condensing
- Ingress Protection Rating: IP30
STANDARD PACKAGE
- TRB500 Gateway
- 9 W PSU
- 4x Mobile antennas (swivel, SMA male)
- Micro-USB cable (0.8 m)
- Ethernet cable
- SIM Adapter kit
- QSG (Quick Start Guide)
- Packaging box
